Jet Suction Dredger

Jet Suction Dredger

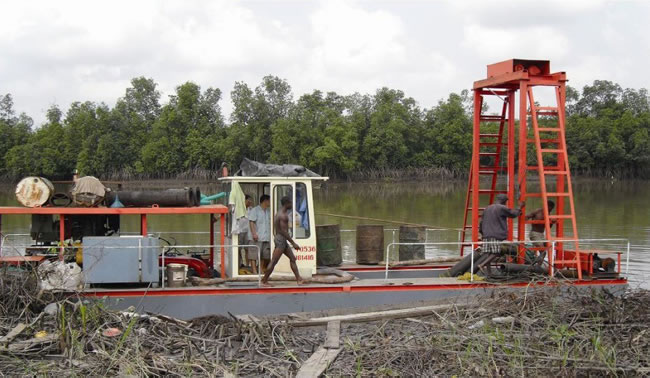

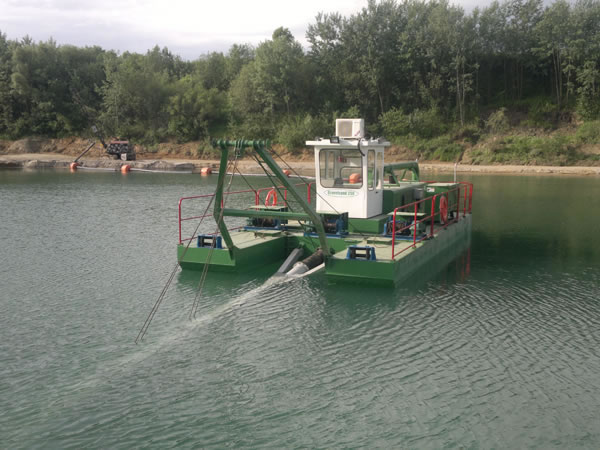

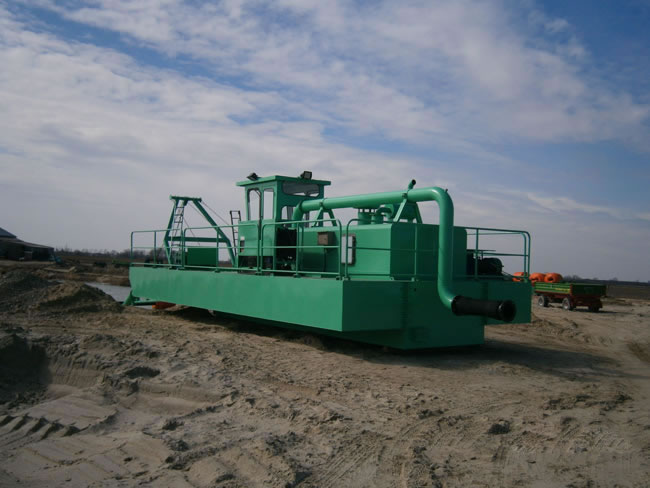

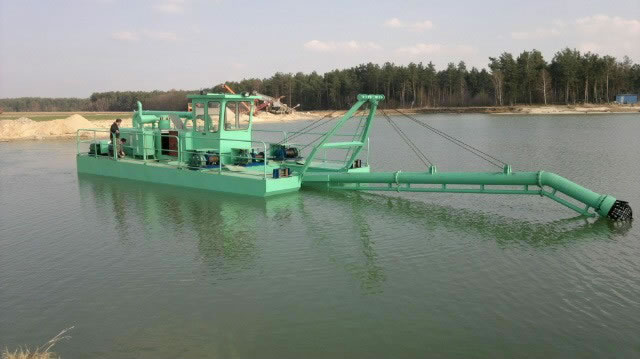

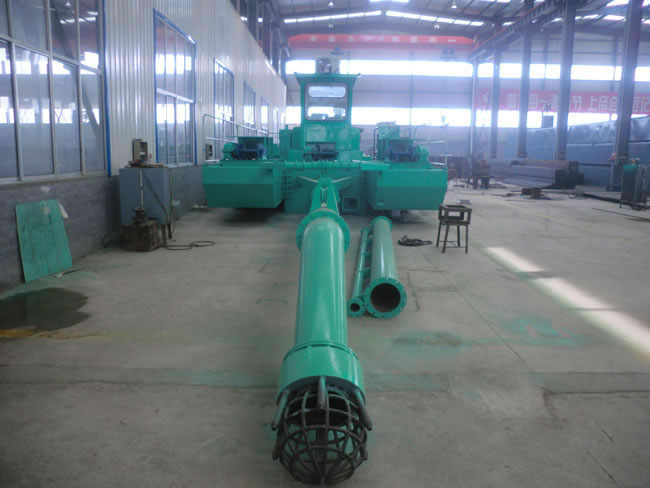

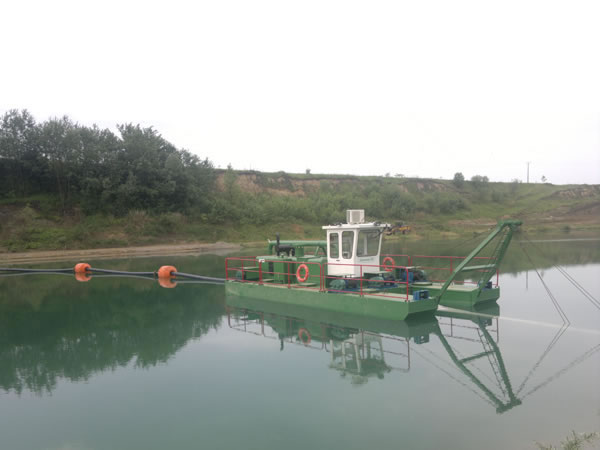

Model YS-200 Jet Suction Dredger
We could provide shipyard products including barge, work ship, cutter suction dredger, jet suction dredgers, chain bucket iron sand dredger, sand dredger, gold mining dredger, iron sand ship, dredging salt ship, transport ship, sand sieving machine, washing sand machine, mining machinery, weed cutting dredger, mud pump, discharge pipe, pipeline floater and ship engine.

Specification for 8-inch Jet Suction Dredger
Item Parameter Remark
Total Length 11.50m
Hull depth 1.2m
Hull width 4.3m
Main Power 270KW Pump Power with 6160WEICHAI ENGINE
Auxiliary Power 24KW WEICHAI ENGINE
Pump model WN200 with Suction10" and Discharge8" ShiJiaZhuang
Suction Pump Dia 250mm
Discharge Pump Dia 200mm
Water flow 800m³/h
Sand Capacity 120m3/h-130m3/h
Discharge Distance 1000m
Working weight 20T
Suction Pipe Length 14m
Winches 4Sets
Operation System Electric control
Dredging Depth 1.5-10m
Warranty 1 year
Lead Time 15 Days
