Chain Bucket Iron Sand Dredger

Chain Bucket Iron Sand Dredger

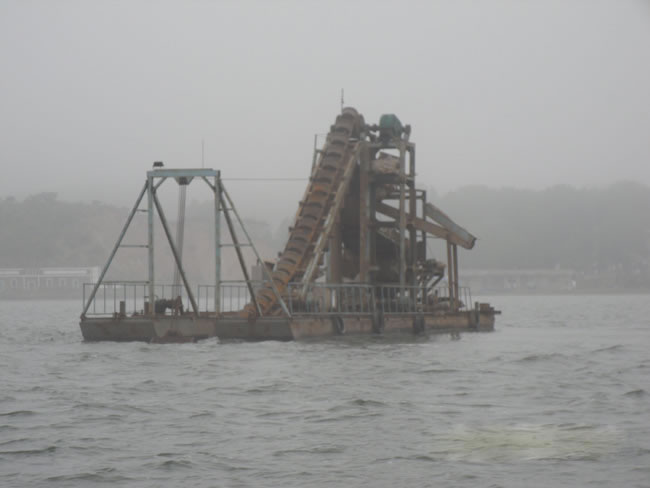

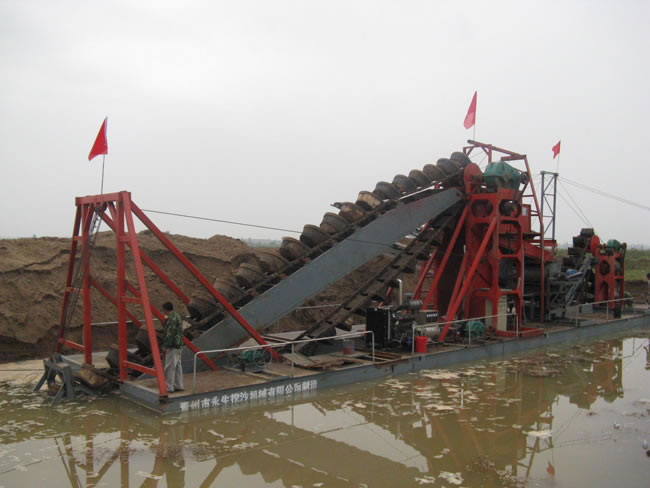

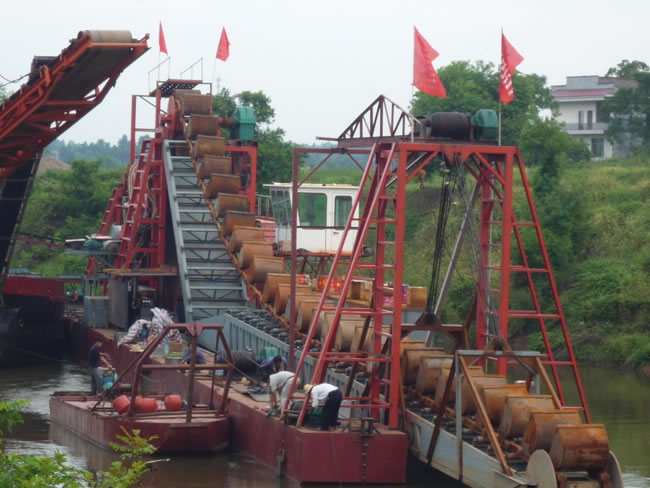

Our chain bucket iron sand dredger with high intensity magnetic separator could extract iron power from sand. It has many advantages such as high efficiency and easy operation and is ideal for separating iron from sand in river or lake.

Product Parameters
Item Parameter Remark
Dredging Bucket 50 units
Bucket Capacity 0.065m³
Hull(L×W×H ) 23.6m×2m×2m×1.14m
Total Power 250KW WEICHAI
Reduction Box 2 Sets
Dredging Depth 6m Max. dredging depth: 30m
Capacity 100m³/h Max. capacity: 400 m³/h
Trommel Screen Dia-130cm, Length-160cm
Ladder Frame Height 5m
Link Plate (L×W×H ) 670mm×90mm×24mm
Magnetic Separator (L ×Dia) 2.4m×0.9m
Separator Capacity 120m³/h
Iron Pump Capacity 120m³/h
Sand Pump Capacity 400 m³/h
Cabin Capacity 3.6m³/h
Spare Oil Seal & 8pcs of Chain Plates
Warranty 1 year
Lead Time 20 days
